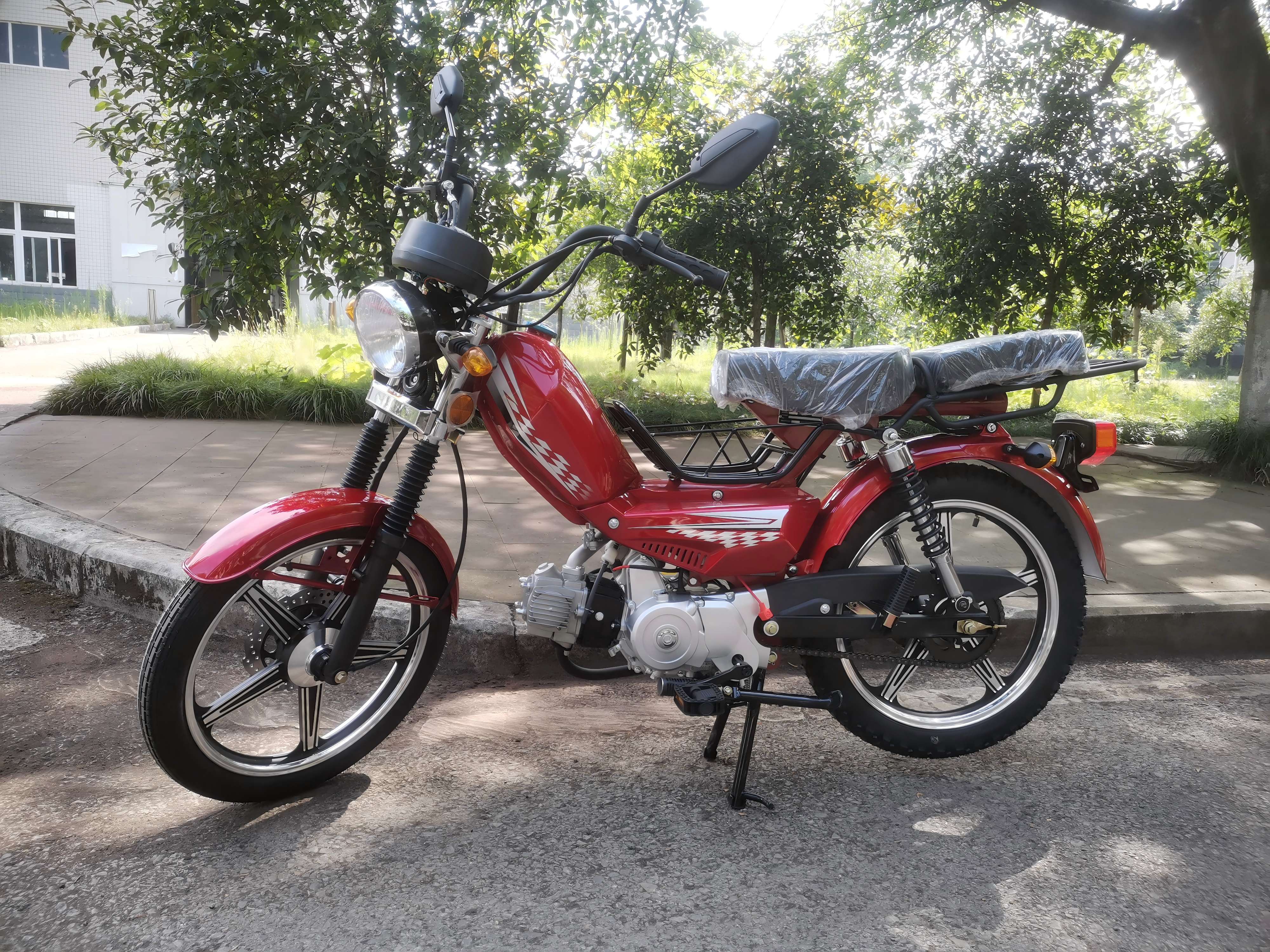

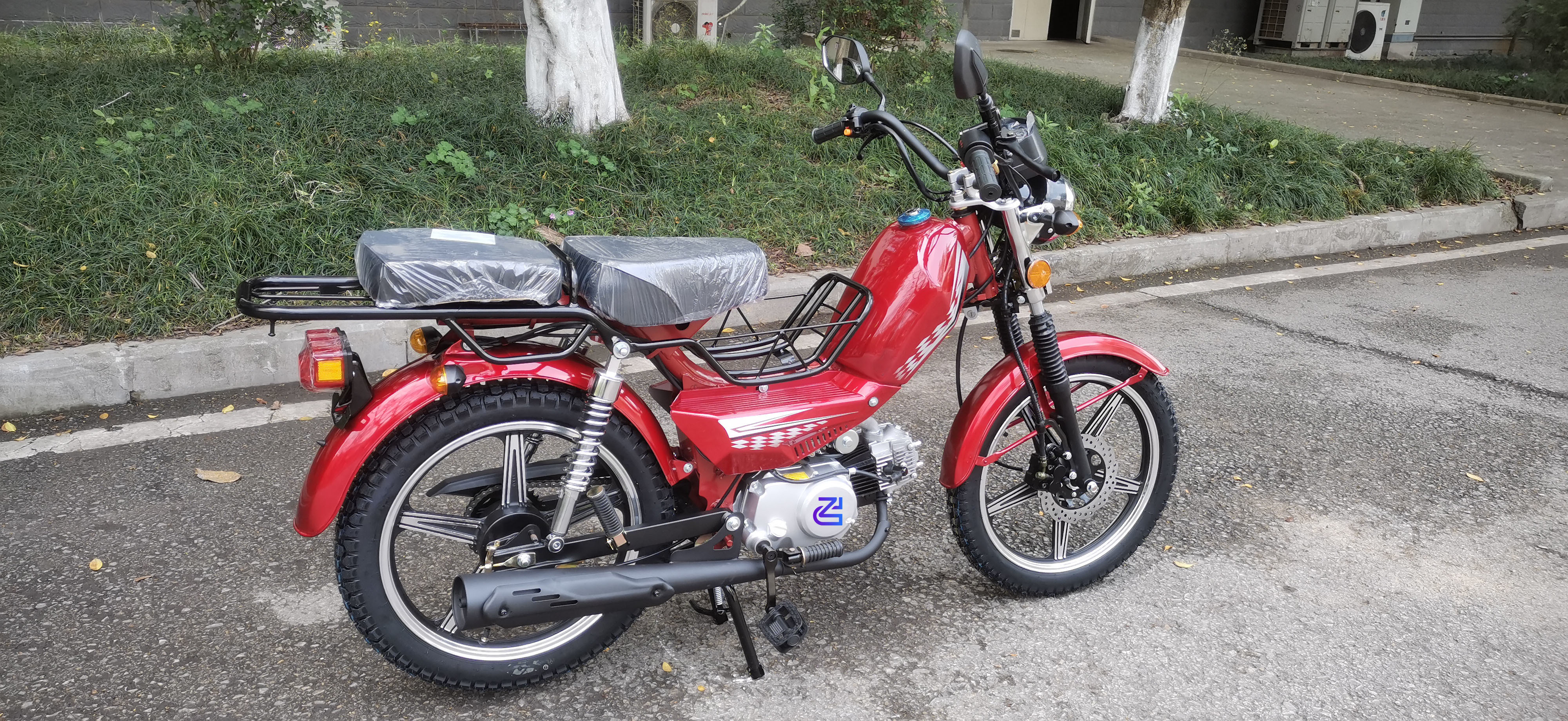

ZEDA Flamingo Gasoline Motorcycle with Pedal

SEO：

Category：

Gasoline Motorcycle

WhatsApp Business：

ZEDA Flamingo Gasoline Motorcycle with Pedal

Related Products

*Note: Please be sure to fill in the information accurately and keep communication open. We will contact you as soon as possible.

Jilin Zeda Technology Co., Ltd. is a professional supplier of petrol bike engine kit and electric bike motor kit.

Address: Room 806，B Plaza, Marriott International,
Economic Development Zone,Changchun, Jilin, China 130041

HOT TAGS

Business License

Content		Main technical and structural parameters	Basic configuration parameter
Vehicle mass structure parameters	1	Weight （kg）	110
	2	Mass Weight (kg)	260
	3	Front and rear axle mass weight distribution（Non-Loading）	40/60
	4	Wheel Base(mm)	1295
	5	Front wheel circumference (mm)	1488
	6	Rear wheel circumference (mm)	1554
	6	Height of Saddle to Ground (mm)	795
	7	Height Engine to Ground (mm)	140
	8	Tank Capacity (L)	6.5
	9	Size (mm)	1980/1050/805
	10	Battery Capacity (V.Ah)	12V 6AH
Body	11	Wheel type (aluminum wheel)	F:16-2.15 R:16-2.15 Inner tube aluminum wheel
	12	Tire Specifications (front)	90-100-16
	13	Tire Specifications (rear)	90-100-16
	14	Headlight specifications/shapes	Single Light;LED Bead 12V
	15	Rear view mirror specification /Prism shape	Mirror shell black body _ Rod Chrome - Round rear view mirror
	16	Muffler specification/shape	Iron muffler with decorative cover
	17	Shelf size/shape	Iron after paint shelves
Engine	18	Engine type/model	Single cylinder;Four stroke, lie the natural air cooling machine, belt balance shaft
	19	Capacity (cm3)	127.1
	20	Bore (mm)	54
	21	Stroke (mm)	55.5
	22	compression ratio	9.1:1
	23	Max Power (kW/ rpm)	7.5kW/（8000r/min）
	24	maximum torque (N.m/ rpm)	10.5N.m/(5500r/min)
	25	Starting Term	Foot start/electric start
